P-3201
Dip Coating Equipment
Dip Coating Equipment
SCS

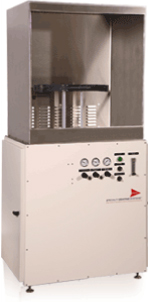

P-3201
Free-Standing Precision
Dip Coating System
to Coat Circuit Boards
Overview
Performance and reliability for in-house dip coating applications!
The SCS P-3201 Dip Coat System is a free-standing precision dip coater designed to coat circuit boards in non-automated production settings. With this system, you can effectively and efficiently apply a range of coatings, including urethane, epoxy, silicone and acrylic coatings, as well as photoresists and solder mask materials. This system includes a stationary 19″ x 25″ tank and an air-over-oil cylinder mechanism that lets you safely move circuit assemblies into and out of the coating to attain the specified thickness.
Features & Benefits
- Powered by compressed air cylinder for smooth, explosion-proof operation
- Adjustable immersion and lift speeds, 1-24 inches/minute
- Dip assembly supports multiple boards per dip cycle
- Removable tank for fast, easy coating changes
- Independently adjustable immersion and withdrawal rates
- Stainless steel tank cover minimizes vapor loss
- Accurate immersion control eliminates masking above dip line
- Meets National Fire Class 1, Group D explosion-proof standards for Division 1 environment
Technical Specifications
| Unit Size (W x D x H) | 38 x 25.75 x 39 in / 96.5 x 65.41 x 99 cm |
|---|---|
| Tank Size (L x W x D) | 27 x 7 x 19 in / 68.6 x 17.78 x 48.3 cm Additional tank sizes available upon request. |
| Tank Drain | 1/2 NPT |
| Immersion Capacity | Up to 13 in (33.0 cm), with 6 in (15.2 cm) freeboard |
| Immersion Rate | 1 to 24 in/min / 2.54 to 61 cm/min |
| Withdrawal Rate | 1 to 24 in/min / 2.54 to 61 cm/min |
| Dip Depth | Adjustable by sensor position |
| Actuation | Compressed air at 15 CFM / 80 psi (25.5 m3/hr/5.5 bars), oil and moisture free |
| Exhaust | 200 CFM (340 m3/hr) with optional hood enclosure |
| Optional Features/Accessories | Circulation pump and overflow dam Stainless steel piping for circulation pump in lieu of brass piping Coating filter Tank air blanket and flow meter PTFE coated tank Exhaust hood enclosure Dip dwell (0-30 seconds or 0-3 minutes) |
All or some of the specifications and features noted on this page may be optional. All necessary details in this regard may not be specified on this page. Please contact us for full details. / Product design, appeareance, functionality, features and specifications are subject to change without notice.
