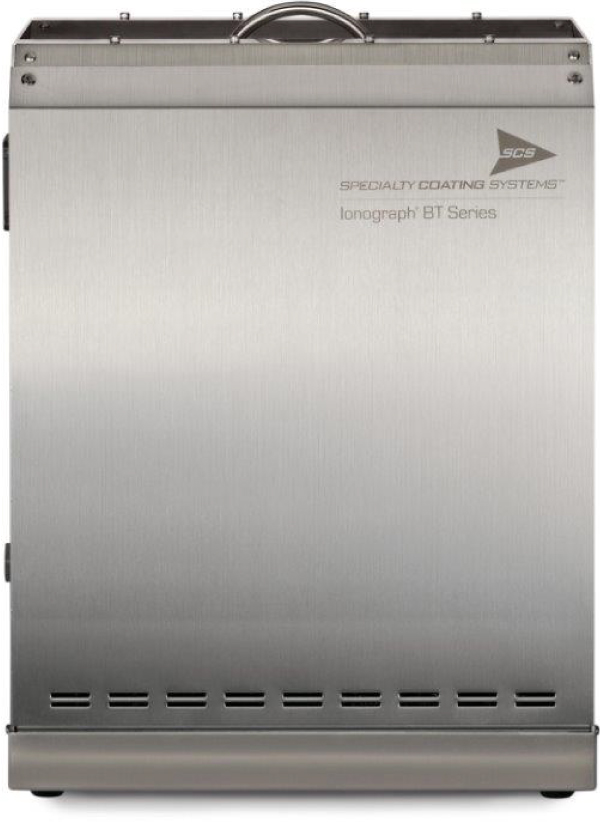

Ionograph BT Series
Efficient and Precise
Ionic Contamination Testing System
for Any Lab or Manufacturer
Overview
The SCS Ionograph® is the industry standard of testing technology!
As the industry standard for ionic contamination testing specified in commonly used cleaning standards, the SCS Ionograph® BT Series offers a convenient table top design that provides quick and accurate testing for labs and manufacturers that need to test individual parts, complete assemblies or small devices. The newly redesigned Ionograph models are available in three test cell sizes to match your application and are available with an all-in-one computer or tablet for maximum convenience and efficiency. The CE-certified Ionograph BT Series features easy-access door panels for routine maintenance of consumable components and their full stainless steel structure is durable for easy cleaning and corrosion resistance. SCS Ionographs offer customers reliable and efficient testing capabilities.
Features & Benefits
- Compliance with industry specifications including MIL-STD-2000A, IPC-TM-650 and ANSI/J-STD-001
- Control of aqueous and semi-aqueous cleaning processes for bare and assembled printed circuit boards
- Control of both the cleaning and the no-clean processes
- Testing to prevent corrosion or product performance problems associated with ionic contamination
- Cleanliness testing of performance-sensitive small parts
- Cleanliness testing of cleanroom specific products such as gloves, fixtures, assembly tools and critical assembly components used in precise manufacturing
- Process control of no clean/low residue processes, including spray fluxer set up and monitoring
Technical Specifications
| SCS Ionograph BT Series: SP (Small Parts) | SCS Ionograph BT Series: MP (Medium Parts) | SCS Ionograph BT Series: LP (Large Parts) | |
|---|---|---|---|
| Test Cell Sizes (W x H x D) | 6 x 6 x 1.125 in / 15.2 x 15.2 x 2.9 cm | 14 x 12 x 2.5 in / 35.6 x 30.5 x 6.4 cm | 14 x 20 x 2.5 in / 35.6 x 50.8 x 6.4 cm |
| Estimated Solution Capacity | 0.4 gal / 1.5 L | 2.6 gal / 10 L | 4 gal / 15 L |
| Dimensions (W x H x D) | 11 x 20.75 X 15 in / 27.9 x 52.7 x 38.1 cm | 15.25 x 19.75 x 15 in / 38.7 x 50.2 x 38.1 cm | 15.25 x 27 x 16.25 in / 38.7 x 68.6 x 41.3 cm |
| Weight | 46 lb / 20.9 kg | 64 lb / 29 kg | 78 lb / 35.4 kg |
| Power Requirements | 120 VAC, 60 Hz, 1 A / 230 VAC, 50 Hz, 0.5 A | 120 VAC, 60 Hz, 1 A / 230 VAC, 50 Hz, 0.5 A | 120 VAC, 60 Hz, 1 A / 230 VAC, 50 Hz, 0.5 A |
All or some of the specifications and features noted on this page may be optional. All necessary details in this regard may not be specified on this page. Please contact us for full details. / Product design, appeareance, functionality, features and specifications are subject to change without notice.
