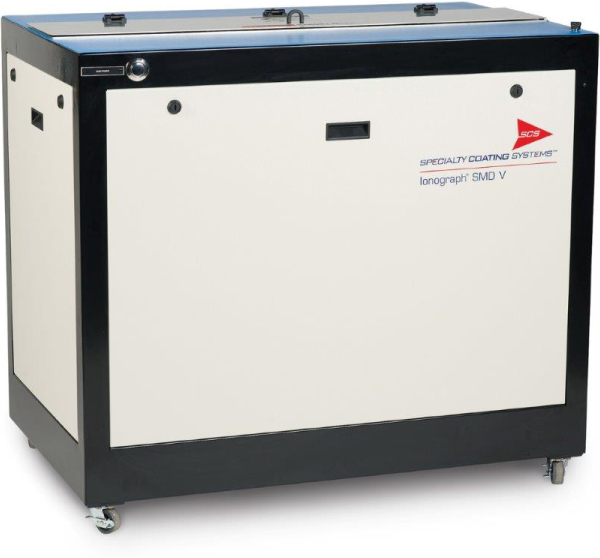

Ionograph SMD V
The Industry Leader
Ionic Contamination Testing System
Overview
The SCS Ionograph® is the industry standard of testing technology!
The SCS Ionograph® is the industry standard for ionic contamination testing specified in commonly used cleaning standards. Using the "dynamic" testing method, this line gives you a reliable testing solution at an affordable price. Plus, the SCS Ionograph® series is available in four newly redesigned models – the Ionograph® SMD V and bench top modules for small, standard and large parts — all operated by our advanced SCS PowerView™ software. SCS Ionographs offer customers reliable and efficient testing capabilities.
Features & Benefits
- Designed for large part ionic contamination testing in a production environment
- Submerged agitation jets and optional heated extract solution provide outstanding sensitivity
- Available with convenient onboard all-in-one computer or tablet
- Operated with SCS PowerView™ software
- Test cells available in four test cell sizes
- Compliance with industry specifications including MIL-STD-2000A, IPC-TM-650 and ANSI/J-STD-001
- Control of aqueous and semi-aqueous cleaning processes for bare and assembled printed circuit boards
- Control of both the cleaning and the no-clean processes
- Testing to prevent corrosion or product performance problems associated with ionic contamination
- Cleanliness testing of performance-sensitive small parts
- Cleanliness testing of cleanroom specific products such as gloves, fixtures, assembly tools and critical assembly components used in precise manufacturing
- Process control of no clean/low residue processes, including spray fluxer set up and monitoring
Technical Specifications
| Test Cell Sizes (W x H x D) | 18 x 20 x 5 in (*) / 45.7 x 50.8 x 12.7 cm 26 x 20 x 5 in (*) / 66 x 50.8 x 12.7 cm 30 x 26 x 5 in (*) / 76.2 x 66 x 12.7 cm 38 x 26 x 3.5 in / 96.5 x 66 x 8.9 cm Test cell tapers from 5 in/12.7 cm at top to 3.1 in/7.9 cm at bottom. |
|---|---|
| Estimated Solution Capacity | 6.5 - 15 gal / 24.6 – 56.8 L |
| Dimensions (W x H x D) | 43.5 x 39.1 x 26.7 in / 110.5 x 99.3 x 67.8 cm |
| Weight | 382 lb / 173 kg |
| Power Requirements | 120 VAC, 60 Hz, 10 A / 230 VAC, 50 Hz, 5 A |
| Maximum Operating Temperature | 113°F / 45°C Only applicable with optional heater. |
All or some of the specifications and features noted on this page may be optional. All necessary details in this regard may not be specified on this page. Please contact us for full details. / Product design, appeareance, functionality, features and specifications are subject to change without notice.
